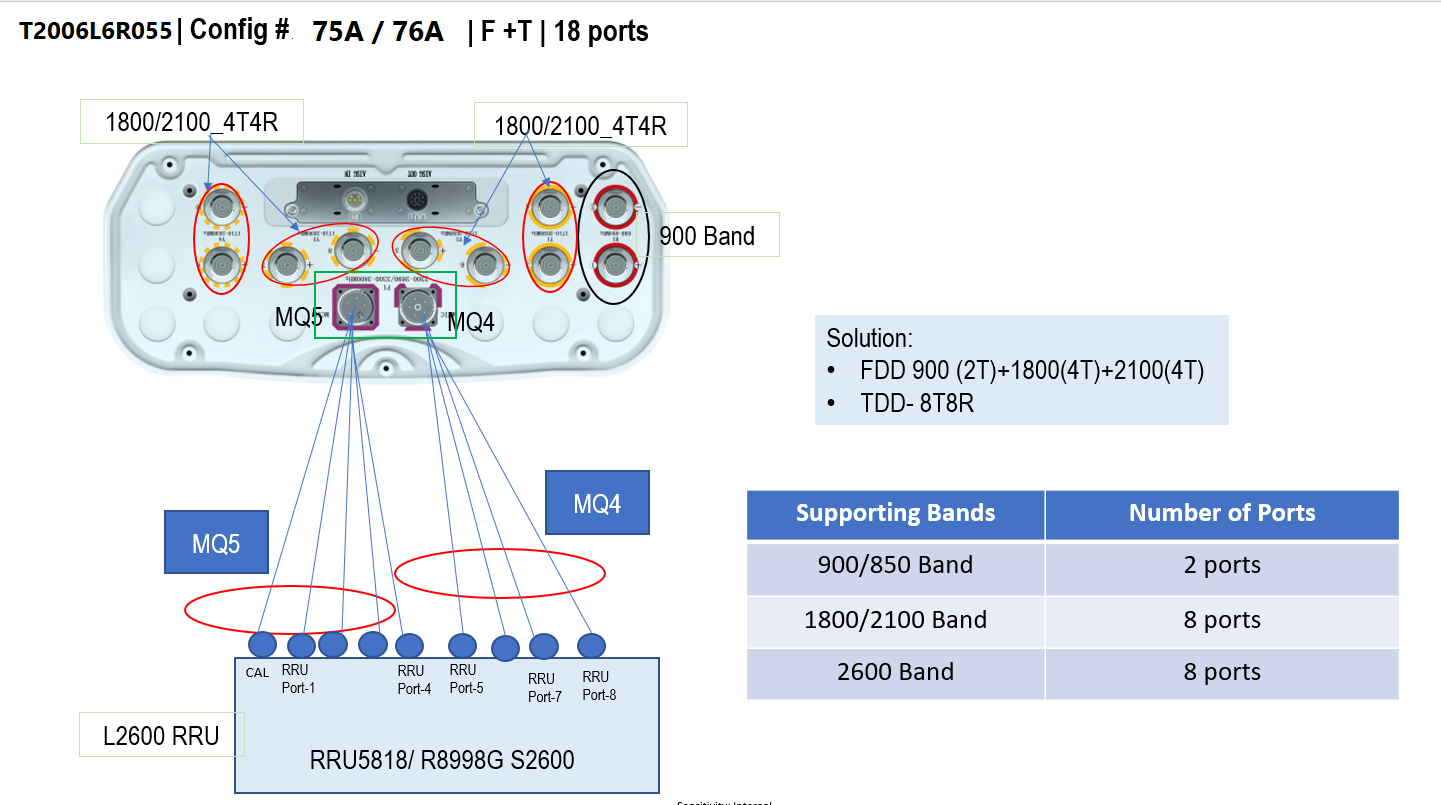

The 8T8R Connection Diagram for Antenna Model T2006L6R055_75(A)/76(A)

The 8T8R Connection Diagram for Antenna Model T2006L6R055_75(A)/76(A)

Note:

This photo is for another antenna, but MQ4 & MQ5 cables connectivity is same for T2006L6R055| Config#76 antenna.

MQ 5 has 5 cables, serial 1-4 & CAL port. These will connect with RRU 1-4 & CAL port

MQ 4 has 4 cables, serial 1-4. These will connect will connect with RRU 5-8 port sequentially
